Brand Name : | Aina Lighting |
Model Number : | AN203-9W-IP44 |
Certification : | CE,RoHS,EMC |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 10000 per day |
Delivery Time : | 7 days for samples |

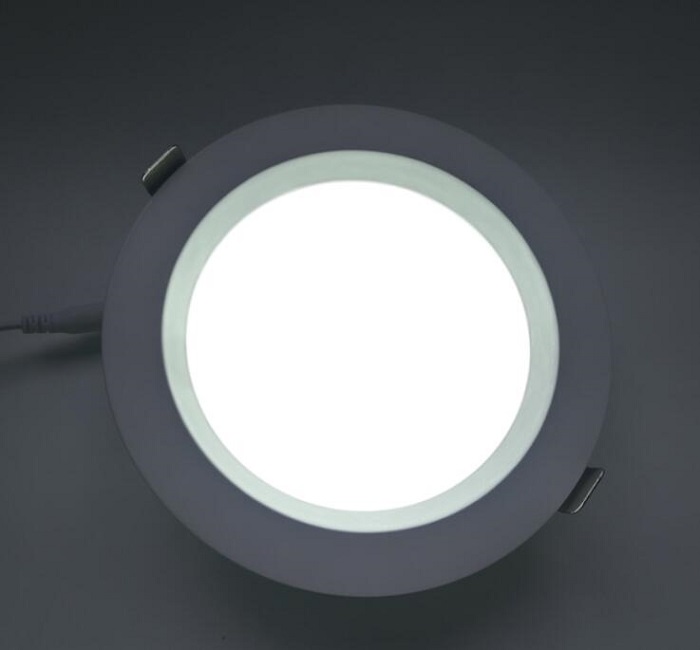

IP44 Water Proof Down Light for Outdoor Lighting
Features
Unique aluninum design excellent cooling effect good corrosion
resistance and durability
High-quality LED chips: Low fever, high brightness, durable, use
life of 50 thousand hours or so
PMMA Diffuser: Luminous uniform, high brightness, scrub the surface
astigmatism design to effectively change the light refraction angle
light diffusion angle greater
Heat Sink: Cold forging aluminium heat sink, Unique heat
dissipation structure, Effectively prolongs service life
Color Temperature: Different color uses will produce different
feeling in your heart, easily create a variety of atmospheres
We make the color more ture: The color index is up to 80ra, which
is the natural color closer to the object being illuninated.
Plastic housing,V-2 flame rating.
Drive on board design.
Triac dimmable(A) and Tri-color(B) available.
Uniform light, without LGP, no yellowing risk.
3000K 4000K 6000K for option.
Warranty: 3years. IP44 front only. 110°beam angle.
Application
Shopping mall, Super-market, Hotel, Office, Path way, Stations,
School, Library, Living room
Specification
With Isolated driver, AC85-265V | Die-casting aluminum housing, Excellent heat sink, PP 0.8mm diffuser, Minima Glare, Glass lighting, Guide plate, Uniform luminance, 0.2mm pet reflector paper. Isolated driver | ||||||||||
1 | AN-3RDS-IS | 3W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 90x90mm, Cut hole: 70x70mm,height: 21mm Beams angle: 120, IP20, 2.5 inches, Box: 11.5x3.3x12cm, Package: 60x35x26cm, 100 pcs/carton | |||||||||
2 | AN-6RDS-IS | 6W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 119x119x16mm, Cut hole: 100x100mm, Beams angle: 120, IP20, 3.5 Inchecs, Box: 14.3x3.3x15cm, Package: 74x35x32cm, 100 pcs/carton | |||||||||
3 | AN-9RD-IS | 9W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 144x144x18mm, Cut hole: 130x130mm, Beams angle: 120, IP20, 4 inches, Box 16x3x19cm, Package: 33x32x40cm, 40 pcs/carton | |||||||||
4 | AN-12RDS-IS | 12W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 167x167x 15mm, Cut hole: 150x150mm, Beams angle: 120, IP20, 5 Inches, Box: 18x3x21.5cm, Package: 37x32x45cm, 40 pcs/carton | |||||||||
5 | AN-15RDS-IS | 15W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 194x194x 14mm, Cut hole: 170x170mm, Beams angle: 120, IP20, 6 Inches, Box 21x3x25.5cm, Package: 52x32x44cm, 40 pcs/carton | |||||||||
6 | AN-18RDS-IS | 18W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 219x219x 15mm, Cut hole: 200x200mm, Beams angle: 120, IP20, 8 Inches, Box: 23x3x27.5cm, Package: 56x32x48, 40 pcs/carton | |||||||||
7 | AN-24RDS-IS | 24W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 297x297x 15mm, Cut hole: 275x275mm, Beams angle: 120, IP20, 12 Inches, Box: 30.5x3x34cm, Package: 62x32x35.5cm, 20 pcs/carton |
Model No. | Wattage | Lumens(±10%) | Input Voltage | CCT | CRI | Dimensions | Cutout |
AN203-6W-100/R8TW | 6W | 480-510 | 220-240V~50-60Hz | 3000K 4000K 6000K | Ra80 | Φ113*35 | Φ90-100 |
AN203-12W-150/R8TW | 12W | 960-1020 | Φ174*38 | Φ145-155 | |||
AN203-18W-205/R8TW | 18W | 1440-1530 | Φ244*38 | Φ198-210 | |||
AN203-20W-220/R8TW | 20W | 1600-1700 | Φ265*41 | Φ215-230 |
About us
Aina-4 Technologies (Shanghai) Co., Ltd. is a private limited
company registered in Shanghai, China. It specializes in the
R&D, design, manufacture, and marketing of light emitting
sources and lighting fixtures. It is an enterprise formed by four
(4) pioneer lighting companies, putting their resources together to
produce products and services that create sustainability not only
for the environment, but also for the economies and societies that
the company grows with.
Aina-4 products reflect the business philosophy of raising customer
expectations and giving them freedom of personal expression through
best quality design, materials, and manufacturing processes, at the
same time making sure that it leaves a positive impact on all
stakeholders socially, economically, and ecologically.
FAQ
Q1. What is the MOQ?
MOQ 1 pcs for mormal product.
Q2. What is your sample terms?
Normal product, 1~3 days. Special product 5-10 days.
Q3. What is the delivery time?
Normal order 5-15 days after deposit. Bulk order 10-30 days.
Q4. Can you OEM?
Yes.
Q5. Can you print our logo on the product?
Yes.
Q6. What standard can this item meet?
CE/RoHS/VDE/SASO/SAA/CCC/CSA/BIS
Q7. Do you have emergency solution for this product?
Yes.
![]() |
