110° Beam Angle IP44 6500K SMD Led Kitchen Downlights

Ask Lasest Price
Brand Name :	Aina Lighting
Model Number :	AN203-24W-100/R8TW
Certification :	CE,RoHS,EMC
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	10000 per day
Delivery Time :	7 days for samples

Add to Cart

Product Details
Company Profile

110° Beam Angle IP44 6500K SMD Led Kitchen Downlights

Ceiling lighting SMD down light LED Light for Hotel

Features

Plastic housing,V-2 flame rating.

Drive on board design.

Triac dimmable(A) and Tri-color(B) available.

Uniform light, without LGP, no yellowing risk.

3000K 4000K 6000K for option.

Warranty: 3years. IP44 front only. 110°beam angle.

Application

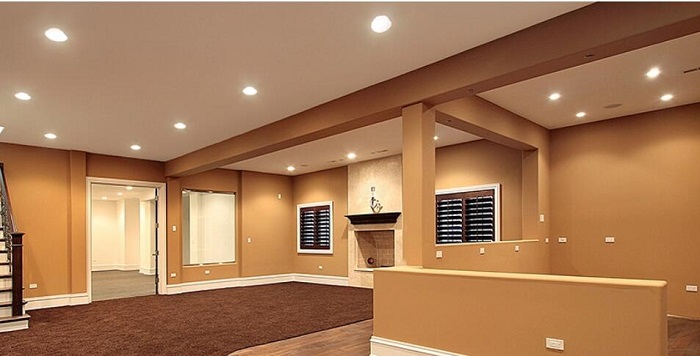

Shopping mall, Super-market, Hotel, Office, Path way, Stations, School, Library, Living room

Specification

With Isolated driver, AC85-265V

Die-casting aluminum housing, Excellent heat sink, PP 0.8mm diffuser, Minima Glare, Glass lighting, Guide plate, Uniform luminance, 0.2mm pet reflector paper. Isolated driver

AN-3RDS-IS

3W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 90x90mm, Cut hole: 70x70mm,height: 21mm Beams angle: 120, IP20, 2.5 inches, Box: 11.5x3.3x12cm, Package: 60x35x26cm, 100 pcs/carton

AN-6RDS-IS

6W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 119x119x16mm, Cut hole: 100x100mm, Beams angle: 120, IP20, 3.5 Inchecs, Box: 14.3x3.3x15cm, Package: 74x35x32cm, 100 pcs/carton

AN-9RD-IS

9W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 144x144x18mm, Cut hole: 130x130mm, Beams angle: 120, IP20, 4 inches, Box 16x3x19cm, Package: 33x32x40cm, 40 pcs/carton

AN-12RDS-IS

12W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 167x167x 15mm, Cut hole: 150x150mm, Beams angle: 120, IP20, 5 Inches, Box: 18x3x21.5cm, Package: 37x32x45cm, 40 pcs/carton

AN-15RDS-IS

15W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 194x194x 14mm, Cut hole: 170x170mm, Beams angle: 120, IP20, 6 Inches, Box 21x3x25.5cm, Package: 52x32x44cm, 40 pcs/carton

AN-18RDS-IS

18W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 219x219x 15mm, Cut hole: 200x200mm, Beams angle: 120, IP20, 8 Inches, Box: 23x3x27.5cm, Package: 56x32x48, 40 pcs/carton

AN-24RDS-IS

24W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 297x297x 15mm, Cut hole: 275x275mm, Beams angle: 120, IP20, 12 Inches, Box: 30.5x3x34cm, Package: 62x32x35.5cm, 20 pcs/carton

Model No.	Wattage	Lumens(±10%) Lm	Input Voltage	CCT	CRI	Dimensions mm	Cutout Mm
AN203-6W-100/R8TW	6W	480-510	220-240V~50-60Hz	3000K 4000K 6000K CCT Selectable	Ra80	Φ113*35	Φ90-100
AN203-12W-150/R8TW	12W	960-1020				Φ174*38	Φ145-155
AN203-18W-205/R8TW	18W	1440-1530				Φ244*38	Φ198-210
AN203-20W-220/R8TW	20W	1600-1700				Φ265*41	Φ215-230


About us

Aina-4 Technologies (Shanghai) Co., Ltd. is a private limited company registered in Shanghai, China. It specializes in the R&D, design, manufacture, and marketing of light emitting sources and lighting fixtures. It is an enterprise formed by four (4) pioneer lighting companies, putting their resources together to produce products and services that create sustainability not only for the environment, but also for the economies and societies that the company grows with.

Aina-4 products reflect the business philosophy of raising customer expectations and giving them freedom of personal expression through best quality design, materials, and manufacturing processes, at the same time making sure that it leaves a positive impact on all stakeholders socially, economically, and ecologically.

FAQ

Q1. What is the MOQ?
MOQ 1 pcs for mormal product.
Q2. What is your sample terms?
Normal product, 1~3 days. Special product 5-10 days.
Q3. What is the delivery time?
Normal order 5-15 days after deposit. Bulk order 10-30 days.
Q4. Can you OEM?
Yes.
Q5. Can you print our logo on the product?
Yes.
Q6. What standard can this item meet?
CE/RoHS/VDE/SASO/SAA/CCC/CSA/BIS
Q7. Do you have emergency solution for this product?
Yes.
Q8. Do you have dimmable solution for this item?
Yes.
