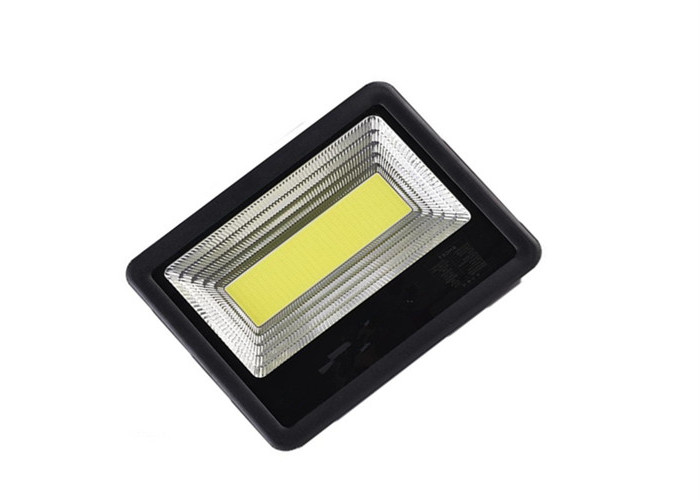

Color Changing LED Floodlight 20W for Outdoor Building and Square
Description
Black/Grey casing LED floodlight
AC85-265V
Special waterproof latex to protect the power supply
No need extra glue, strong waterproof silicone gasket used
LED Type: LED floodlight
RGB Version with Seven Colors
High Efficiency Lighting
Remote Controller is optional
Power: 20W
| CRI | >80 | Base | US/EU/UK Plug |
| LED Type | Cob | IP Rate | IP65 |
| Material | Aluminum | Working Temperature | -20 degrees to 40 degrees |
| Beam Angle | 120 degrees | OEM | Available |
| Life Time | 50000 hrs | Body Color | Black |
Features
No Need to warm up. It can start and restart immediately, and there
will be no light fading phenomenon in ordinary electrified
discharge lamps
Excellent electrical performance: High power factor, low current
harmonics, constant voltage supply, output constant light flux.
The installation is adaptable: it can be installed in any direction
without restriction.
Installation Guide
Loosen the screws on the bracket, and mark the drilling position on
the installation site
Drill a hole on the marked position
Attach the bracket to the installation site using screws
Attach the lighting fixture to the bracket using screws
Speficiation
| Model | Power | Color |
| AN-FG-CC-20-06 | 20W | RGB |
Other ChoiceA
| Model | Color | Input | LPW |
| AN-FG-BC-30-06 | RGB | AC100-347V | 140LM/W |
| AN-FG-BC-50-06 | RGB | AC100-347V | 140LM/W |
| AN-FG-BC-100-06 | RGB | AC100-347V | 140LM/W |
| AN-FG-BC-150-06 | RGB | AC100-347V | 140LM/W |
| AN-FG-BC-200-06 | RGB | AC100-347V | 140LM/W |
Other ChoiceB
| Model | Power | Input | CCT | Size |
| AN-FG-BW-30-06 | 30W | AC100-277V | 3000K-6000K | 180 x 166 x 49mm |
| AN-FG-BW-50-06 | 50W | AC100-277V | 3000K-6000K | 180 x 166 x 49mm |
| AN-FG-BW-100-06 | 100W | AC100-277V | 3000K-6000K | 288 x 243 x 62mm |
| AN-FG-BW-150-06 | 150W | AC100-277V | 3000K-6000K | 350 x 284 x 75mm |
| AN-FG-BW-200-06 | 200W | AC100-277V | 3000K-6000K | 433 x 323 x 80mm |
Application
Billboards, Highways, Railway tunnels, Bridges and Culverts,
squares, buildings, etc
Stadium
Warehouse
Factory
Tunnel, subway
Gymnasium, Garage Lighting
Storage, Yard and Square lighting
Station, dock and road lighting
